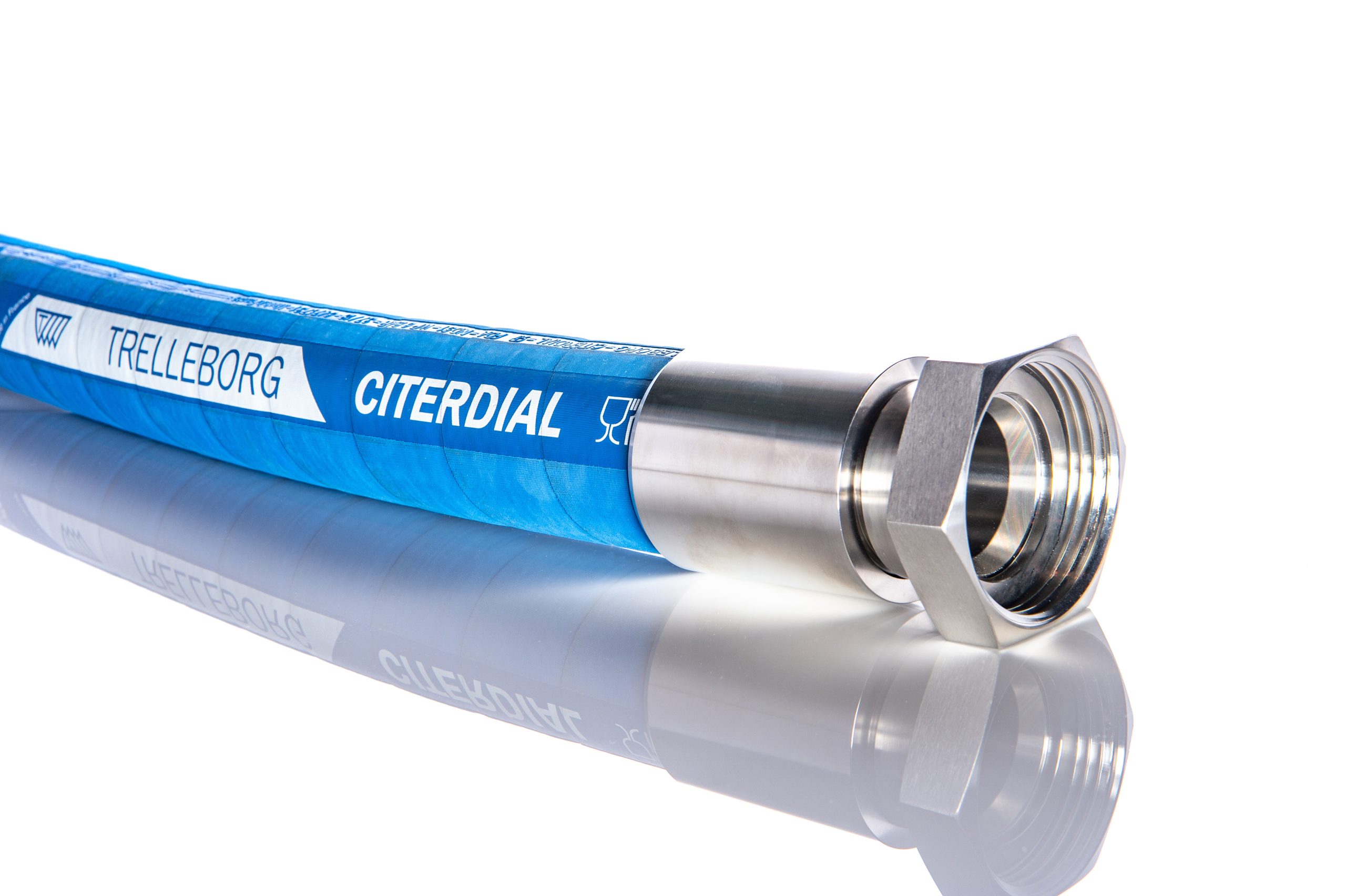

Citerdial Food and Drink Hose

Our Citerdial food and drink hose is an extremely flexible hose that provides exceptional ease of handling to the food, brewery, dairy and beverage industries. This hose can transfer liquids such as fruit juice, wine, cider, beer, vinegar, alcohol up to 96% and drinking water.

The Citerdial hose is constructed to protect food materials from corrosive substances and with FDA approved smooth seamless white NR liner, allows the inner layer to be resistant against ordinary detergents. The outer construction of the hose is protected with a NR blue cover, allowing the hose to be resistant to aggressive working conditions such as abrasion and environmental assaults.

The Citerdial hose can be supplied in continuous lengths up to 40m.

Lantech Solutions offer an extensive range of hygienic hoses. Where the highest quality is a necessity, these hoses are ‘tailor made’ to suit your requirements. We only supply high-quality dairy hoses, food and drink hoses, and food quality hoses to ensure hygiene and safety.

Download Spec Sheet

Categories: Brewery Hoses, FOOD & DRINK HOSE

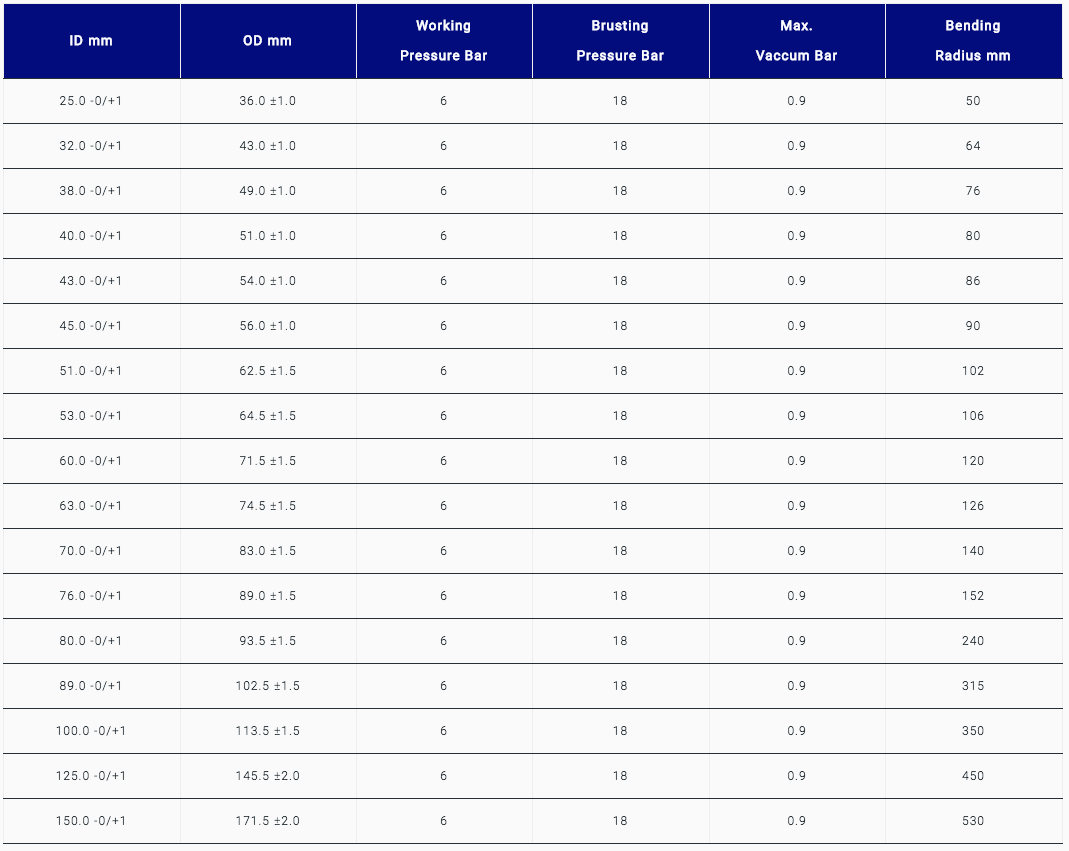

Specification Table
Features & Benefits

Description

ID mm	OD mm	Working Pressure Bar	Brusting Pressure Bar	Max. Vaccum Bar	Bending Radius mm
25.0 -0/+1	36.0 ±1.0	6	18	0.9	50
32.0 -0/+1	43.0 ±1.0	6	18	0.9	64
38.0 -0/+1	49.0 ±1.0	6	18	0.9	76
40.0 -0/+1	51.0 ±1.0	6	18	0.9	80
43.0 -0/+1	54.0 ±1.0	6	18	0.9	86
45.0 -0/+1	56.0 ±1.0	6	18	0.9	90
51.0 -0/+1	62.5 ±1.5	6	18	0.9	102
53.0 -0/+1	64.5 ±1.5	6	18	0.9	106
60.0 -0/+1	71.5 ±1.5	6	18	0.9	120
63.0 -0/+1	74.5 ±1.5	6	18	0.9	126
70.0 -0/+1	83.0 ±1.5	6	18	0.9	140
76.0 -0/+1	89.0 ±1.5	6	18	0.9	152
80.0 -0/+1	93.5 ±1.5	6	18	0.9	240
89.0 -0/+1	102.5 ±1.5	6	18	0.9	315
100.0 -0/+1	113.5 ±1.5	6	18	0.9	350
125.0 -0/+1	145.5 ±2.0	6	18	0.9	450
150.0 -0/+1	171.5 ±2.0	6	18	0.9	530

Click image to open larger view.

Features & Benefits

Features of Our Citerdial Food and Drink Hose:

For milk handling, tankers and processing
Extremely flexible, no kinking
Smooth seamless white tube that does not propagate bacterial growth and meets most European and USA regulations
Unaffected by changes in temperature
Resistant to cleaning with detergents or steam to max temp of 110°C
Non-marking abrasion resistant cover
Contains no Phthalate
Inner Tube: Food grade NR, white, smooth
Reinforcement: Synthetic textile with embedded steel helix
Cover: Weather and abrasion resistant NR, blue
Temperature Range: -30°C to +80°C
Sizes: from minimum ID of 25.0mm/ OD of 36.0mm to Maximum ID of 150.0mm/OD of 171.5mm
Working Pressure: 6 bar
Bursting Pressure: 18 bar
Standard Approval: EU regulation no. 1935/2004 and 2023/2006 FDA regulation no. 21 CFR 177.2600
