Description
Properties
Application
Used globally in stringent applications that need the protection of a hose that meets or exceeds the internationally recognised SAE 100 R14 standard.
Design
Smoothbore PTFE tube with SS 304 / SS 316 braid.
Inner layer
Natural (GP) or Anti-static (AS) smoothbore PTFE tube.
Outer layer
SS 304 / SS 316 braid.
Temperature Min
-60°C.
Temperature Max
+260°C.
Material
PTFE to: ‘ASTM D4895, Type 1, Grade 4, Class B’

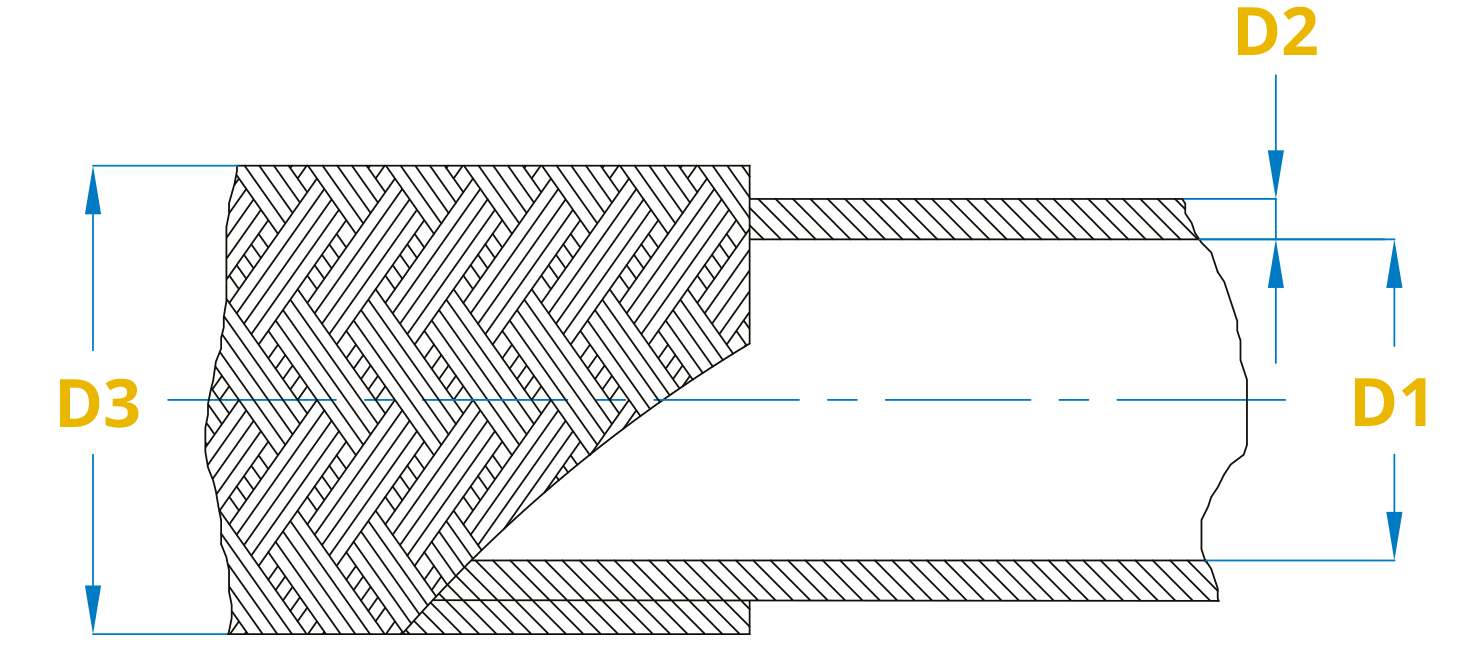

| Natural (GP) Part No | Anti-static (AS) Part No | Size (") | ID Nominal (mm) | OD Nominal (mm) | Wall Thickness (mm) | Minimum Bend Radius (mm) | MWP (Bar) | BP (Bar) |
|---|---|---|---|---|---|---|---|---|
| PFSBGS06-GP-KV-SS-34 | PFSBGS06-AS-KV-SS-34 | 1/4" | 6.50 | 10.15 | 1.02 | 76.00 | 552.00 | 1656.00 |
| PFSBGS10-GP-KV-SS-34 | PFSBGS10-AS-KV-SS-34 | 3/8" | 10.00 | 14.35 | 1.02 | 127.00 | 310.00 | 930.00 |
